Q1860-90918 6 Removing and replacing parts 141
Tray 1 separation pad
1 Open Tray 1 and remove the Tray 1 roller (see page 140).
2 With one hand, use a small flat-blade screwdriver to pry the Tray 1 separation pad (callout 1)
from the holder.

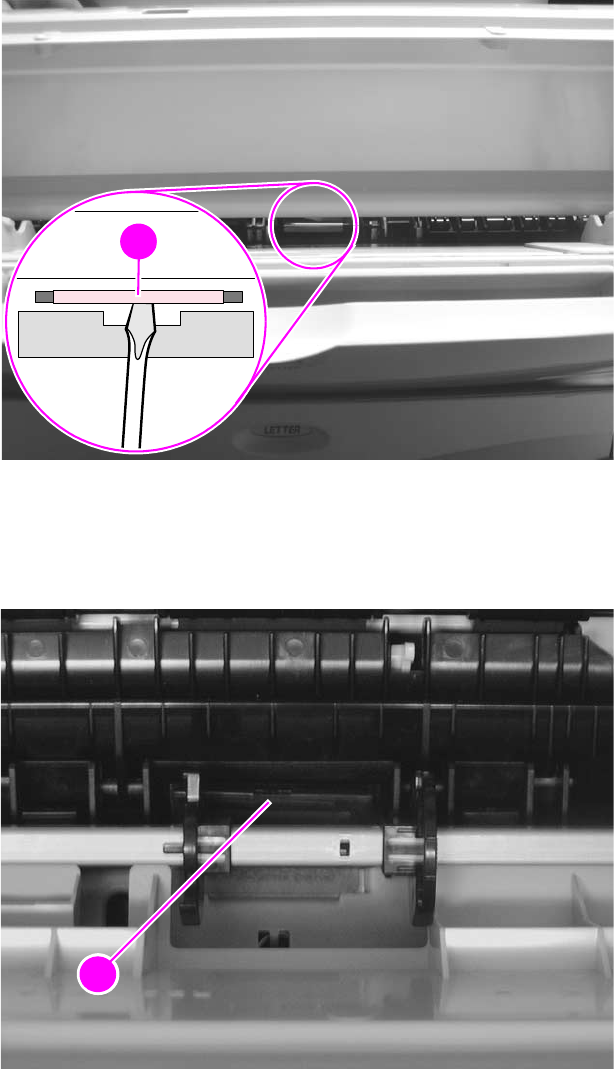

Figure 70. Tray 1 separation pad removal (1 of 2view through slot in Tray 1)
3 With the other hand inside the printer, remove the separation pad (callout 2).
Figure 71. Tray 1 separation pad removal (2 of 2)
To reinstall
Make sure that the silver clip faces the front of the printer, and firmly press the new separation
pad into the holder until it clicks into place.
2
1
2
2
