Q1860-90918 6 Removing and replacing parts 119
Toner cartridge door assembly
1 Remove the top cover (see page 115).
2 Remove the control panel from the top cover (see page 117).
Note The control panel must be removed before you can separate the toner cartridge door from the
top cover.
3 Disengage the pins (callout 1) by pressing them outward.

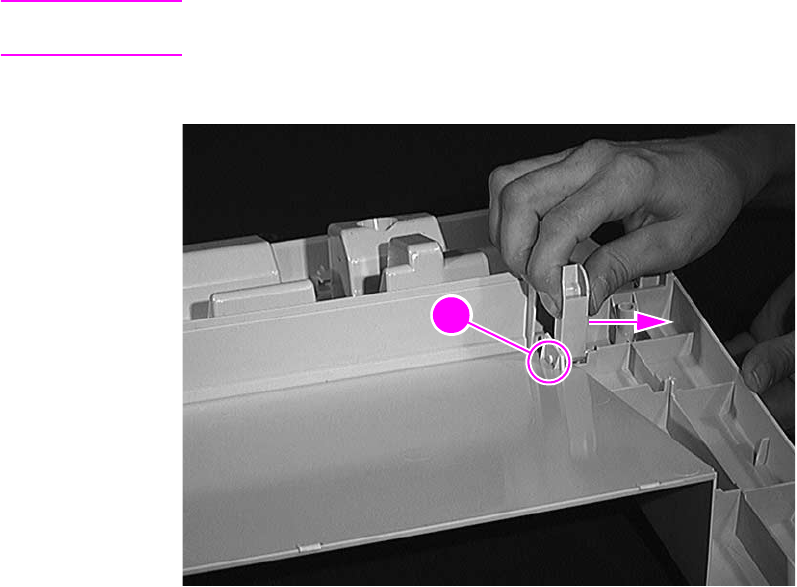

Figure 45. Toner cartridge door assembly removal (underside of the top cover door)
2
1
