500-sheet feeder power connector
1 Remove the left cover from the 500-sheet feeder (see page 174).
2 Remove the two screws (callout 1).
3 Disconnect one cable (callout 2).

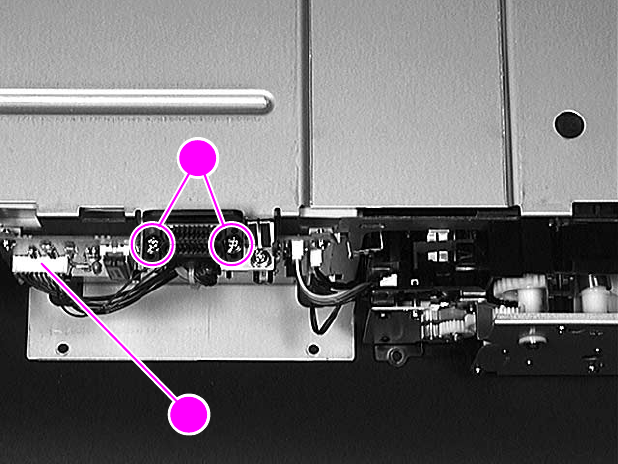

Figure 120. Power connector removal
4 Lift the connector off of the frame.
