160 Removing and replacing parts Q1860-90918
4 Remove the four self-tapping screws (callout 2) inside the chassis.
Note Lift up the small green handle of the registration assembly to gain access to two of these screws.

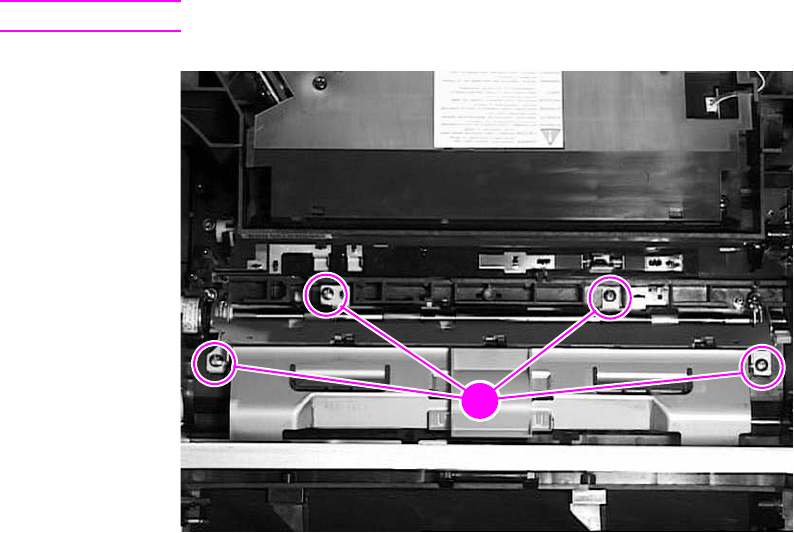

Figure 93. Registration assembly removal (2 of 2)
5 Lift the registration assembly out of the chassis.
To reinstall
When you reinstall the registration assembly, be careful to align the flags in the base as you
reinstall the assembly.
When you reinstall the clutch, orient the flat spot in the shaft with the clutch. When you slide the
clutch on the shaft, make sure that the metal alignment tab is seated on the printer frame. Also
make sure that the cable is situated away from the registration assembly.
2
2
