Q1860-90918 6 Removing and replacing parts 123
Left and right side covers
The removal procedure is the same for both the left and the right side covers.
1 Remove the top cover (see page 115).
2 Locate the tab (callout 1) in the top, middle of the cover and release the tab by pushing down
on it.
3 Grab the side cover at the top and pull it toward the front of the printer to release the tabs.
With your other hand, grab the lower, back edge. Rock the cover gently until it comes loose,
and remove the cover.
4 Repeat steps 1 through 3 for the other side cover.

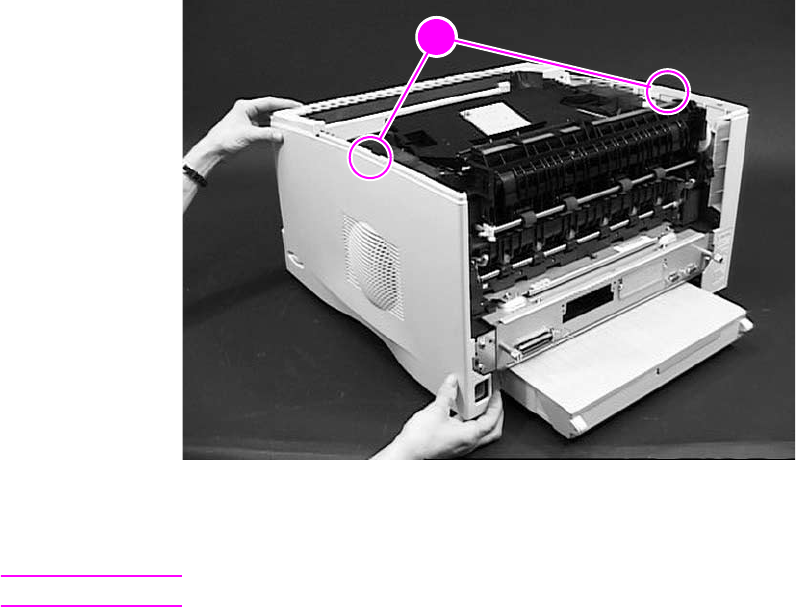

Figure 51. Side covers removal
Note For reassembly, seat the tabs in the bottom of the side cover first. Then snap on the top of the cover.
2
1
