170 Removing and replacing parts Q1860-90918
Sensing flag
1 Place the optional 250-sheet feeder face-up on a work surface and remove the 250-sheet
tray.
2 Use the small flat-blade screwdriver to press the locking tab (callout 1).

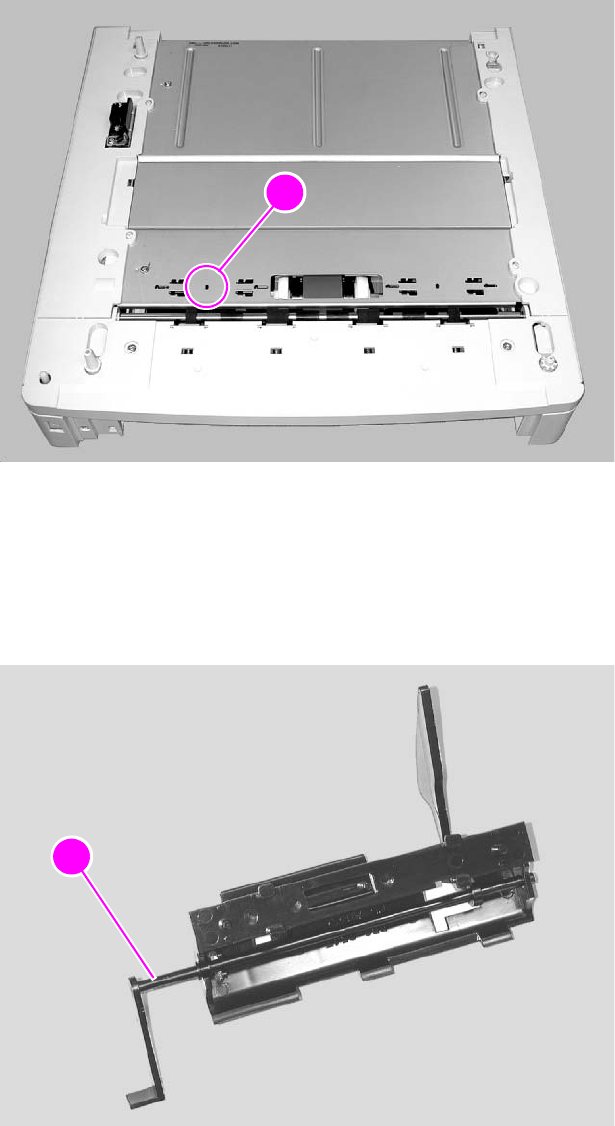

Figure 104. Optional 250-sheet feeder sensing flag removal (1 of 2)
3 From the other side of the base plate, use your other hand to slide the paper-sensing-arm
assembly to the right.
4 Lift the paper-sensing flag (callout 2) from the assembly.
Figure 105. Optional 250-sheet feeder sensing flag removal (2 of 2)
