166 Removing and replacing parts Q1860-90918
Toner cartridge guides
1 Remove the top cover (see page 115) and the left and right side covers (page 123).
2 Release the leading tab (callout 1) first.
3 Rotate the right guide clockwise and the left guide counterclockwise to unlock the remaining
two tabs.
4 Slide the guide out of the chassis.

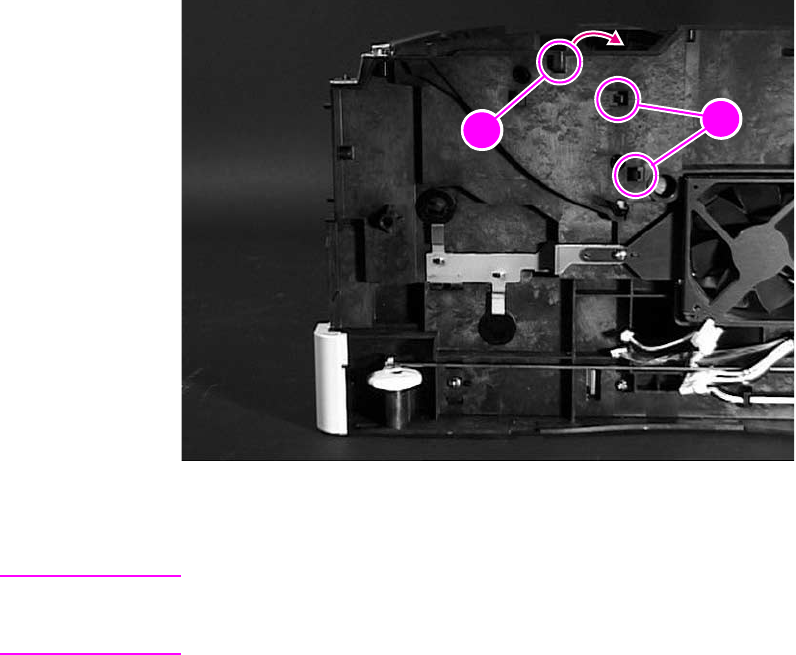

Figure 99. Toner cartridge guide removal (shown from right side)
Note To reinstall the guide, insert the two non-leading tabs (callout 2) first. Twist the right guide
counterclockwise and the left guide clockwise to lock the guides. Gently flex the leading tab so
that it will fit into the slot easily. Then snap the guide into place.
