142 Removing and replacing parts Q1860-90918

Tray 2 pickup roller

Note This procedure applies to Tray 2 and to any optional 250-sheet tray.

1 Remove the 250-sheet tray.

2 For Tray 2, carefully tilt the printer onto its left side.

-Or-

For an optional 250-sheet tray, set the feeder upside-down on the work surface.

3 Press the locking tab (callout 1) that is on the white, side cam (callout 2), and slide the cam

and the black bushing (callout 3) away from the roller (callout 4).

4 Slide the roller between the two cams, rotate the roller 180 degrees, and then remove the

roller from the shaft.

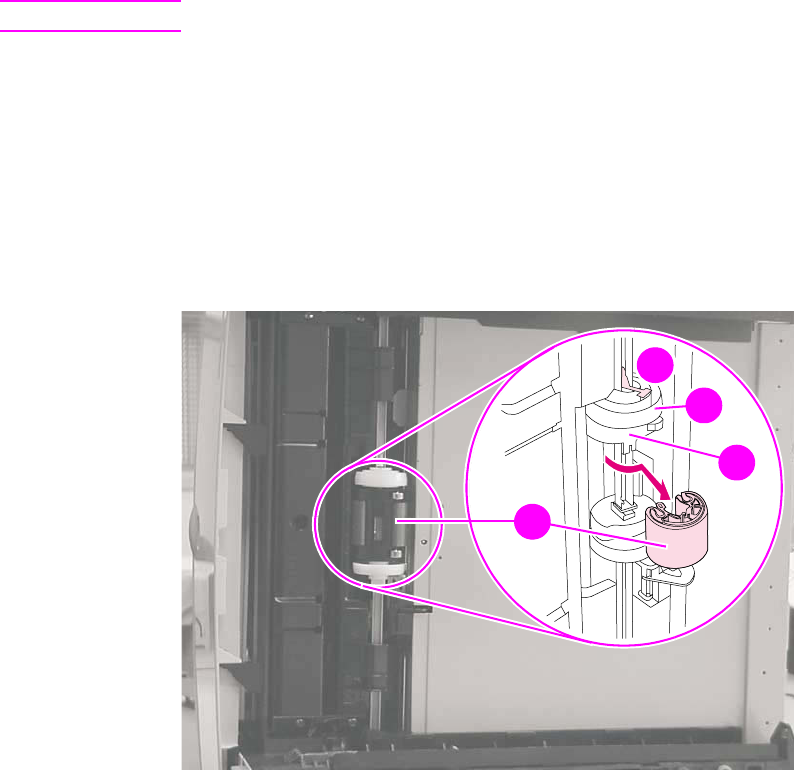

Figure 72. Tray 2 pickup roller removal (bottom of the printer)

To reinstall

Orient the pin on the roller so that it lines up with the hole in one of the side bushings. Slide the

cam toward the roller until the tab snaps into place.
